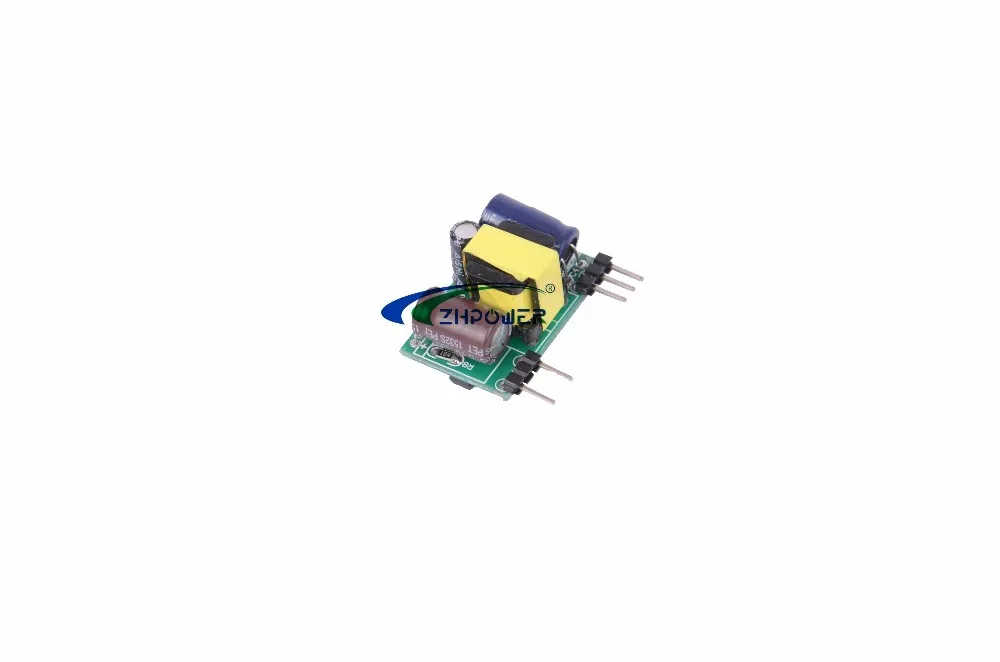

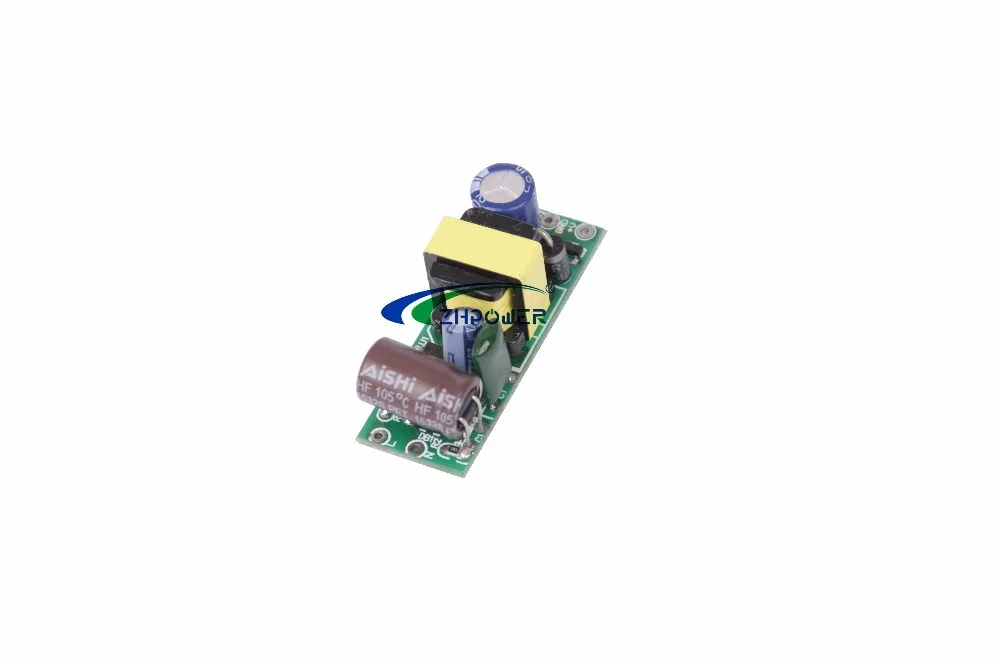

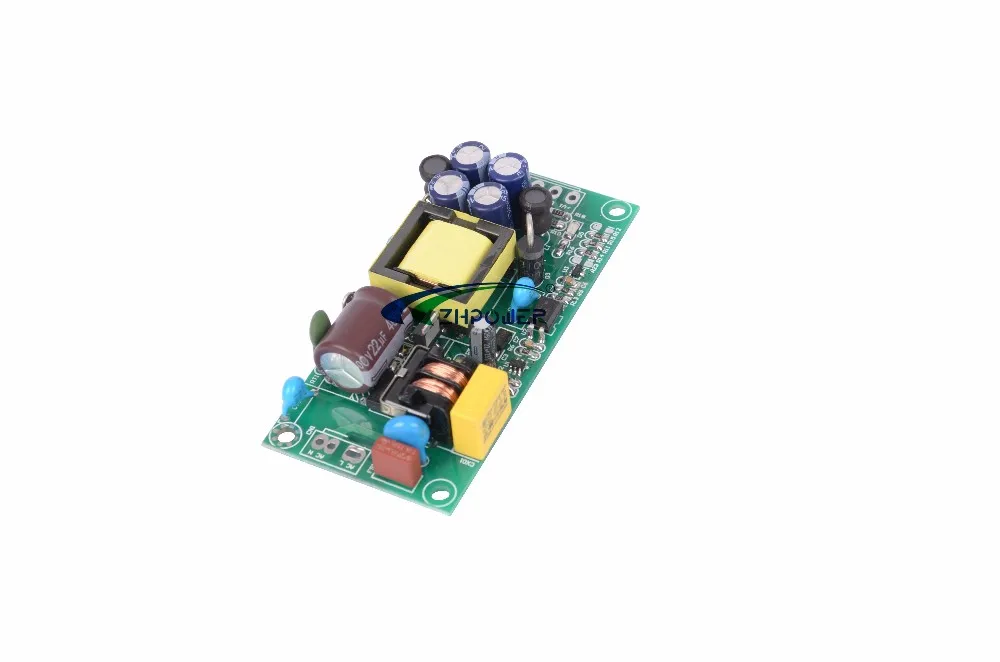

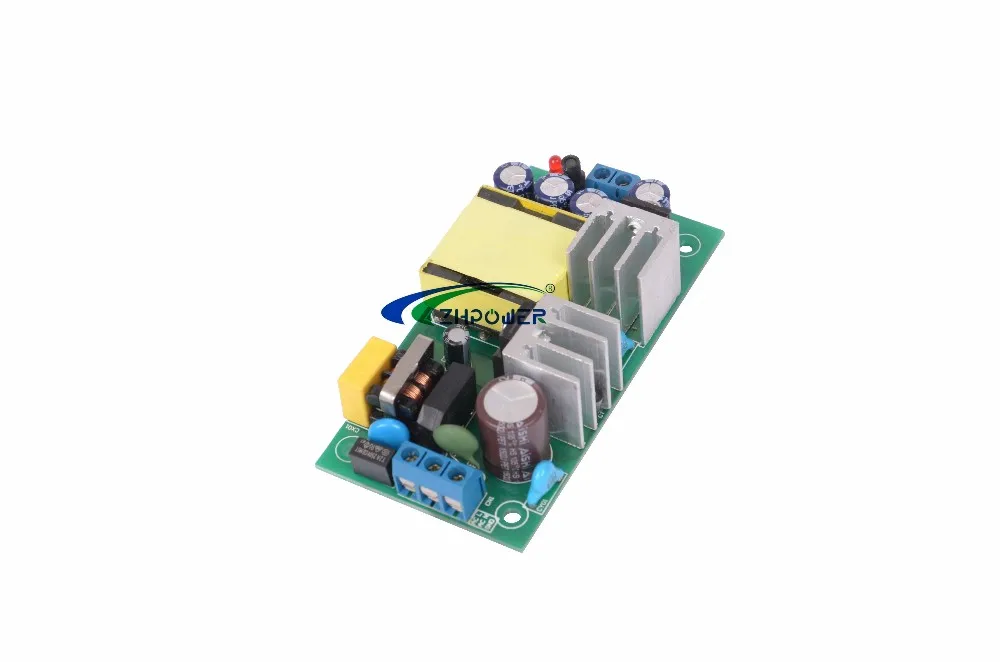

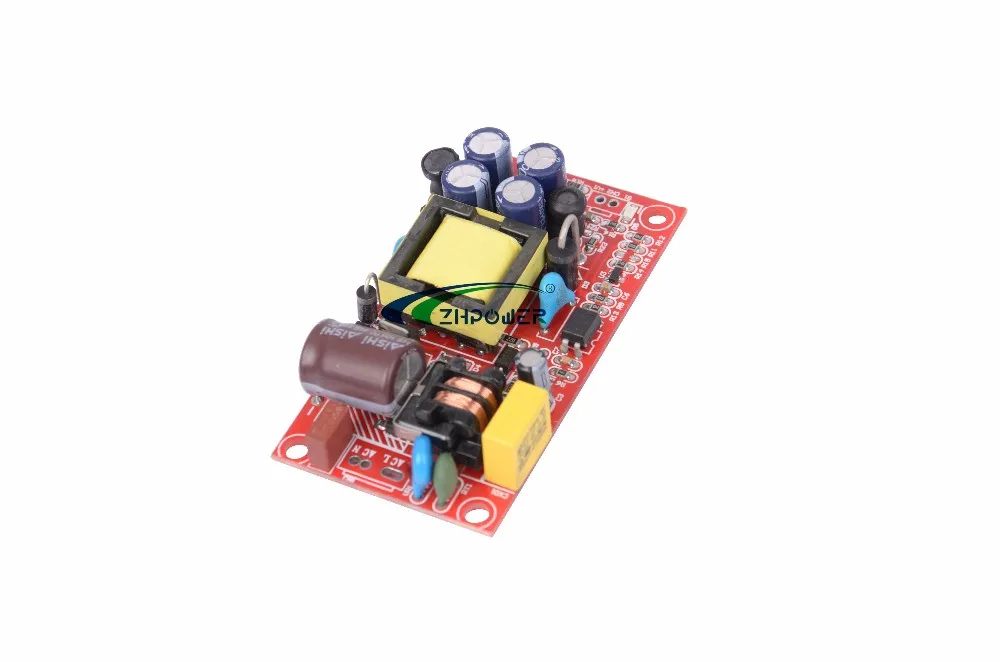

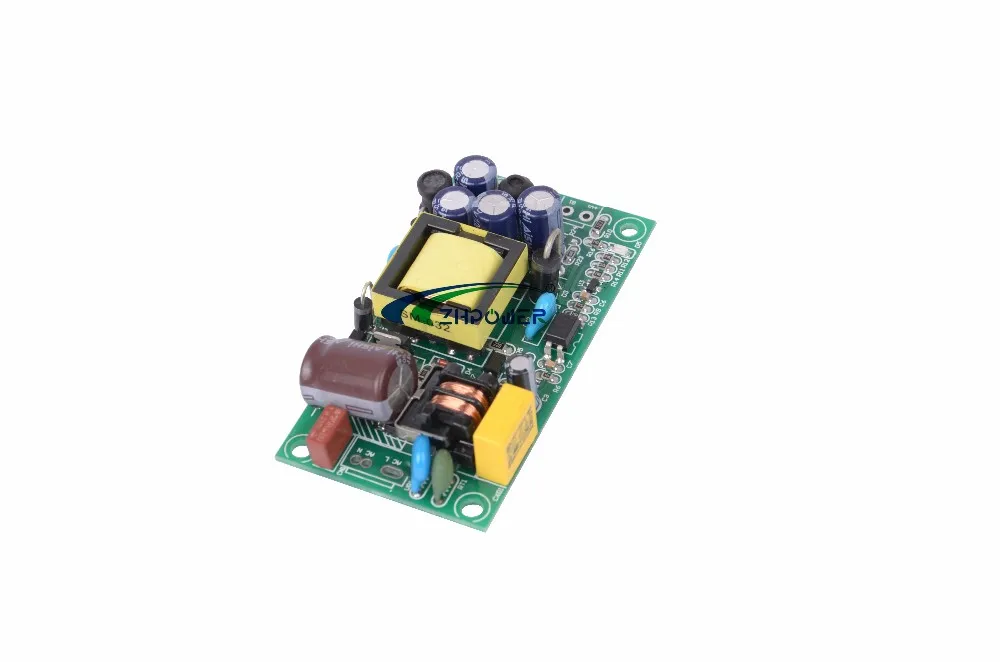

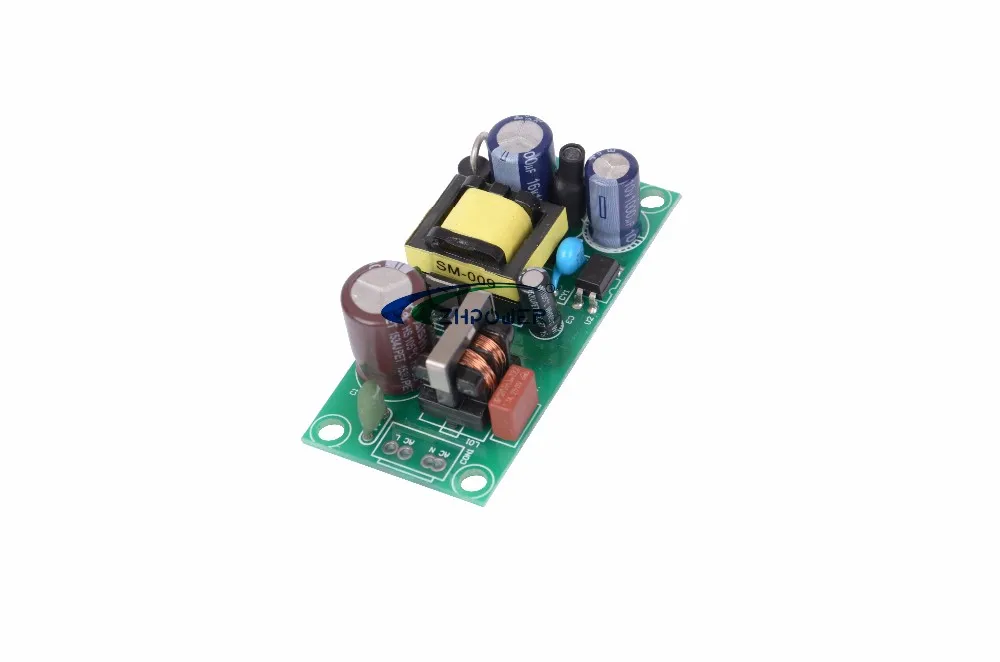

85-264VAC Open frame switching power supply isolation 12W Bare board PCB module power supply dc 5V/9V/12V/15V/24V

FOB Reference Price:Get Latest Price
US $1.8-2.8 / Piece | 500 Piece/Pieces (Min. Order)
Supply Ability:
3000000 Piece/Pieces per Month Power Supplies
Port:
shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
ZHENHUAN
Model Number:
ZF-12W
Output Power:
1 - 50W
Output Type:
Single
Input Voltage:
110-264
Output Voltage:
5V/12V/15V/24V, 5V/12V/15V/24V
Output Frequency:
47-63HZ
Output Current:
0.1-5
Product Name:
switching power supply
Power:
12W
Input Frequency:
47~63Hz
Warranty:
2 years
OEM:
Avaliable
Packaging & Delivery
Packaging Details
Carton and White Box
Delivery Time
100~500pcs: 6workdays,500~1000pcs:9workdays Sample can be delive
Product Details

Product features:

1 .the product is easy to install, can be installed on the motherboard, plug in using the plug directly.

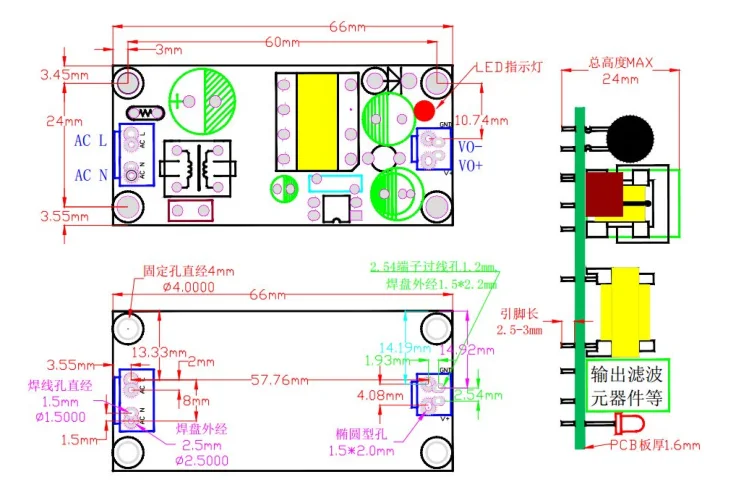

2.corner have fixed mounting holes to prevent the movement / vibration caused by power outages, fixed hole straight through the 4mm.

3. universal input voltage: AC 85-264V or  110-370V.

4. high efficiency, high power density, low output ripple noise.

5 .input and output high isolation.

6 .over current protection, short circuit protection and temperature protection.

7 .output filter, no external filter circuit.

8. warranty for 2 years.

Product Introduction
Product Parameters
Name
Specification
Rated power(W)
TYP.

ZF-PLF12B-05

5V 2A

10W
75

ZF-PLF12B-09

9V 1.35A

12W
76

ZF-PLF12B-12

12V 1A

12W

78

ZF-PLF12B-15

15V 0.8A

12W

78

ZF-PLF12B-24
24V 0.5A
12W
81
Product Details Show
Operating voltage range(VAC)
85-264
frequency range (Hz)
47-63
AC input (VAC)
85-264
DC input (VDC)
110-264
Input current (mA)
0.5/115VAC    0.25/230VAC
leakage current (mA)
≤1mA/240VAC
Ripple an
Noise
≤100mV
Start rising Time
2000ms, 30ms/115VAC1000ms, 30ms/230VAC
retention time
16ms/115VAC           50ms/230VAC
Storage temperature and humidity
-40~+85℃ 10-95%RH
Security level
CLASS B
Resistance to shock
10-500 hz 2 g / 10 minutes cycle. X, Y, Z every 60 minutes
electromagnetic compatibility
EN55022(CISPR22) Class B EN61000-3-2,-3
Why Choose Us
Product Packing

Shipping Details

1. Small orders will be delivered by DHL, FEDEX, UPS, TNT or other international express. Normally it takes 3-7 days to deliver to your desination.

2.Shippment will be arranged under FOB condition.

Products Recommend













FAQ

1.Q: Do you offer samples for testing?
A: Yes,we offer samples for testing with cost paid by buyer.Besides we welcome our customers to take sample as we believe seeing is believing.

2.Q:Do you have warranty?
A :Yes,we have warranty of 3 year period.

3.Q:Do you have certificates for your products?
A:Yes,we have UL/CUL,FCC,RoHS,CE,KC,SAA,TUV GS PSE Certifications.

4. Q:Can you design the ODM based on our design?
A: We can design. one week make up sample. 30days sample test 45days start to MP.

5. Q:Can you print our logo on labels?
A: yes,We can OEM,MOQ will be 500units.

6. Q:What's the main product of you factory?
A: We are the supplier for 0-500W global power adapter, including wall plug adapter,usb adapter/charger,desktop adapter, metal case switching power supply,led power supply, waterproof power supply,led driver,open frame power supply and ect.

7.Q: What's your payment item?
A: Our standard payment is T/T in advance, Paypal and Western Union.

...
