Triac dimmer Led driver 25-42V DC 300ma 350mA 12w-100w dimmable led drivers UL class 2 power supply for Led lighting dimming

FOB Reference Price:Get Latest Price
US $1-5 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZHENHUAN
Model Number:
PE294B1230
Output Power:
1-50W, 12W
Output Type:
single, Single
Input Voltage:
90-260vac
Output Voltage:
1-60v, 25-42V
Output Frequency:
47-63HZ, 50-60Hz
Output Current:
100-500mA, 300ma
input:
90--277VAC
output:
25-42V 300ma 12W
Type:
Dimmable led driver
Dimmable mode:
trailing edge / leading edge
application:
led lighting products
SupplyAbility
SupplyAbility:
500000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
inner package : white box
outer package : carton box
High quality led driver
Port
shenzhen / HK
Lead Time :
3-7days
Product Description

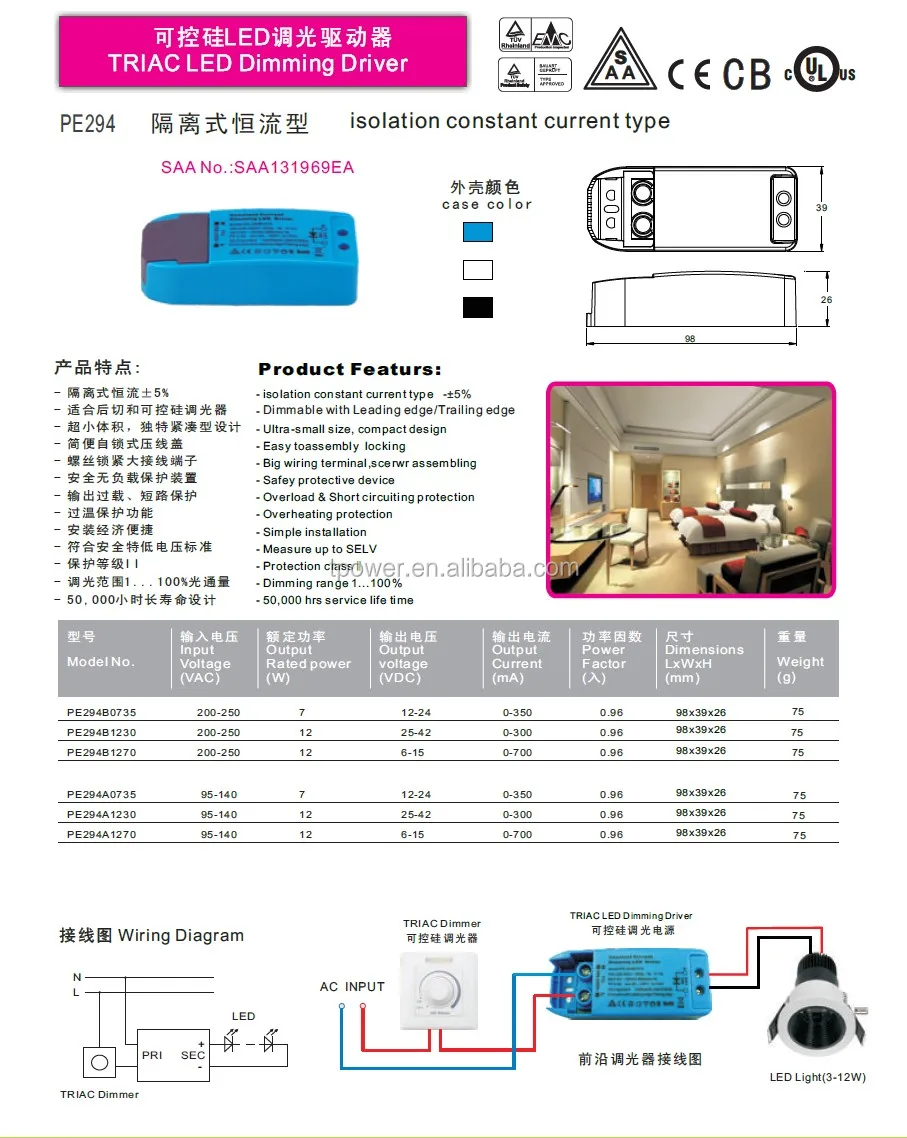

light-dimmer Led driver 25-42V DC 300ma 350mA 12w-100w dimmable led drivers ul class 2 power supply for Led lighting dimmingPE294.jpg

Model

PE294B0670

PE294B1230

PE294B1270

Output

output power

5W

12W

12W

constant voltage

3-8V

25-42V

6-15V

constant current

500mA

300mA

700mA

current precision

±5%

±5%

±5%

ripple

400mVp-p

400mVp-p

400mVp-p

start-up time

<500mS

<500mS

<500mS

Input

voltage range

200-250

200-250

200-250

frequency range

47-63Hz

47-63Hz

47-63Hz

PF

PF>0.91

PF>0.91

PF>0.91

Protection

open load protection

voltage limit model,the output voltage is the Max voltage.

short circuit protection

belching model,after take out the unusual thing it can be start again

over load current

dual constant current,will over load current

over load voltage

21V

Environment

temperature

-20~ +65°C

humidity

20-95%RH

stock temperature

-40~ 85°C

coefficient of temperature

±0.03%/°C(0-50°C)

Safety

safety specification

EN 61347-2-13:2006 /EN 61347-1:2008

rating of pressure

I/P-O/P:3.75KVAC

insulation

I/P-O/P:100M Ohms / 500VDC /25°C/70%RH

EMI

EN55015

harmonic current

EN6000-3-2/EN6000-3-3

electromagnetic tolerate

EN6000-4-2

Others

size

(L*W*H) 129*44*28mm

package

white box:98*39*26mm

master carton:322*276*251mm

product picture

 pe294b-ce6_

CC Triac Dimmable
TRIAC DIMMABLE LED DRIVER
SERIESMODEL NO.INPUT VOLTPOWEROUTPUT
VOLT
OUTPUT
CURRENT
Dimming
TYPE
DIMENSION
(mm)
PE291PE291B1220PE291B:
220-250

PE291A:
95-140V
8.4W25-42V200mATriac dimming52*30*20PE291B0670
PE291B07307.2W9-24V300mA
PE291B07358.4W9-24V350mA
PE291B07456.75W6-15V450mA
PE291B07507.5W6-15V500mA
PE291B07607.2W6-12V600mA
PE291B07708.4W6-12V700mA
PE291B06705.6W3-8V700mA
PE294PE294B1220PE294B:
220-250



PE294A:
95-140V
8.4W25-42V200mATriac
dimming
98*39*26pe294b-ce
PE294B122510.5W25-42V250mA
PE294B122811.76W25-42V280mA
PE294B123012.6W25-42V300mA
PE294B123211.2W25-35V320mA
PE294B07256W9-24V250mA
PE294B07286.72W9-24V280mA
PE294B07307.2W9-24V300mA
PE294B07327.68W9-24V320mA
PE294B07358.4W9-24V350mA
PE294B07409.6W9-24V400mA
PE294B125012W9-24V500mA
PE294B125511W9-20V550mA
PE294B126012W9-20V600mA
PE294B09609W6-15V600mA
PE294B12659.75W6-15V650mA
PE294B127010.5W6-15V700mA
PE294B127511.25W6-15V750mA
PE296PE296B1230PE296B:
220-250



PE296A:
95-140V
12.6W25-42V300mATriac
dimming
129*44*28PE296-5_
PE296B07307.2W9-24V300mA
PE296B07358.4W9-24V350mA
PE296B125012W9-24V500mA
PE296B127010.5W6-15V700mA
PE296B182517.5W43-70V250mA
PE296B183018W43-60V300mA
PE296B183517.5W43-50V350mA
PE296B143514.7W25-42V350mA
PE296B184016.8W25-42V400mA
PE296B184217.64W25-42V420mA
PE296B184517.1W25-38V450mA
PE296B185017.5W25-35V500mA
PE296B166014.4W12-24V600mA
PE296B166515.6W12-24V650mA
PE296B167016.8W12-24V700mA
PE296B167518W12-24V750mA
PE296B245523.1W25-42V550mA
PE296B248019.2W12-24V  800mA
PE296B249021.6W12-24V  900mA
PE299PE299B3060PE299B:
220-250



PE299A:
95-140V
25.2W25-42V600mATriac
dimming
183x50x323_
PE299B306527.3W25-42V650mA
PE299B307029.4W25-42V700mA
PE299B307528.5W25-38V750mA
PE299B308025.6W25-32V800mA
PE299B303524.5W43-70V350mA
PE299B304028W43-70V400mA
PE299B304529.2543-65V450mA
PE299B305030W43-60V500mA
PE299B3615036W12-24V1500mA
PE299B368536W25-42V850mA
PE299B368034.4W25-42V800mA
PE299B3610536W25-35V1050mA
PE299B365035W42-70V500mA
PE297PE297B3060PE297B:
220-250

PE297A:
95-140V
25.2W25-42V600mATriac
dimming
165x45x334PE60AAb
PE297B306527.3W25-42V650mA
PE297B307029.4W25-42V700mA
PE297B307528.5W25-38V750mA
PE297B308025.6W25-32V800mA
PE297B303524.5W43-70V350mA
PE297B304028W43-70V400mA
PE297B304529.2543-65V450mA
PE297B305030W43-60V500mA
PE298PE298B50200PE298B:
220-250



PE298A:
95-140V
48W12-24V2000mATriac dimming195*44*34PE60DA-1_
PE298B5018043.2W12-24V1800mA
PE298B5016539.6W12-24V1650mA
PE298B5015036W12-24V1500mA
PE298B5013556.7W25-42V1350mA
PE298B5012050.4W25-42V1200mA
PE298B5010544.1W25-42V1050mA
PE298B509037.8W25-42V900mA
PE298B508535.7W25-42V850mA
PE298B508033.6W25-42V800mA
PE298B507049W43-70V700mA
PE298B506545.5W43-70V650mA
PE298B506042W43-70V600mA
PE298B505538.5W43-70V550mA
PE298B505035W43-70V500mA
PE251PE251B1220PE251B:
220-250
PE251A:
95-140V
8.4W25-42V200mATriac dimming 202*18*10PE252B2045-
PE251B122510.5W25-42V250mA
PE251B123012.6W25-42V300mA
PE252PE252B2030PE252B:
220-250

PE252A:
95-140V
19.5W42-65V300mATriac dimming250*18*10
PE252B202420W50-84V240mA
PE252B205021W25-42V500mA
PE252B204820.16W25-42V480mA
PE252B204518.9W25-42V450mA
PE252B204016.8W25-42V400mA
PE252B203816W25-42V380mA
PE252B203514.7W25-42V350mA
PE253PE253B3070PE253B:
220-250

PE253A:
95-140V
29.4W25-42V700mATriac dimming300*18*10
PE253B306527.3W25-42V650mA
PE253B306025.2W25-42V600mA
PE253B305523.1W25-42V550mA
